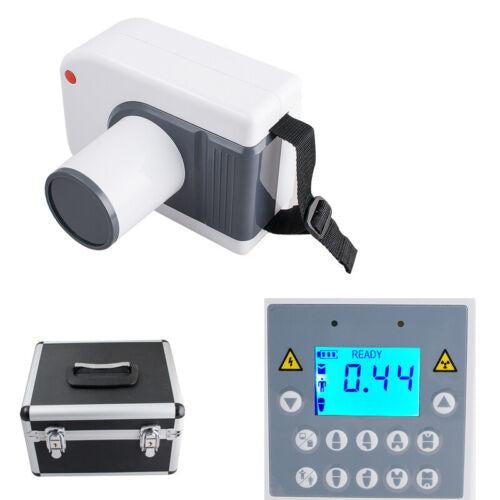

Handheld Portable Dental X-Ray Machine 60KV

Professional DC high-frequency portable dental X-ray unit. Designed to be small, lightweight, and produce nearly zero radiation, making it an essential tool for daily clinic operations and dental implant surgery.

Key Features

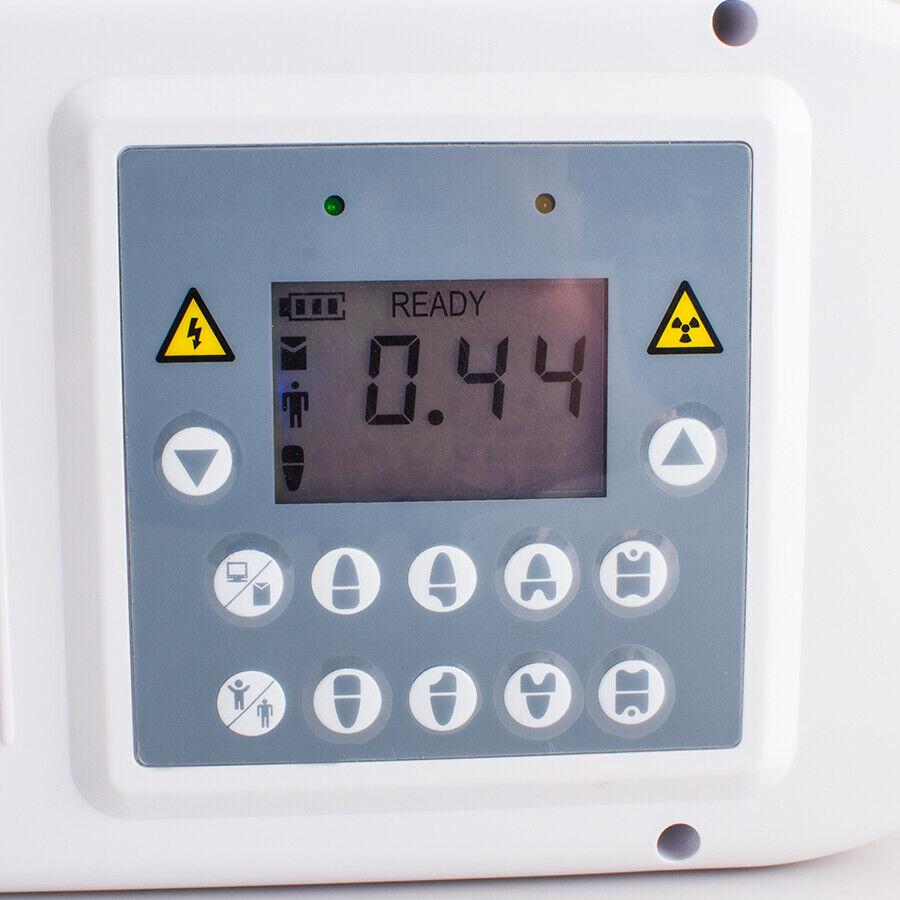

• Easy Operation: Manual buttons on the shell surface for straightforward control.
• Reliable Protection: Components are installed in a central PC board with insulation vacuum and sealed stereotype protection.
• Clinical Diagnosis: Suitable for oral pre-treatment diagnosis of internal organization structure and root depth.
• Long Battery Life: High-durability battery takes about 500 images per full charge (up to 1000 recharge cycles).
• Digital Compatibility: Connects easily with intra-oral digital X-ray imaging systems.

Technical Specifications

• Tube Voltage / Current: 60KV / 1.5mA
• Exposure Time: 0.1 - 2s
• Frequency: 30KHz
• Tube Focus: 0.3mm × 0.3mm
• Distance from Skin to Cone: 130mm
• Battery: DC14.8V 6400mAh
• Rated Power: 60VA
• Charger Input: AC100V-240V ± 10%

Package Includes

• 1 x Main X-Ray Body
