Description:

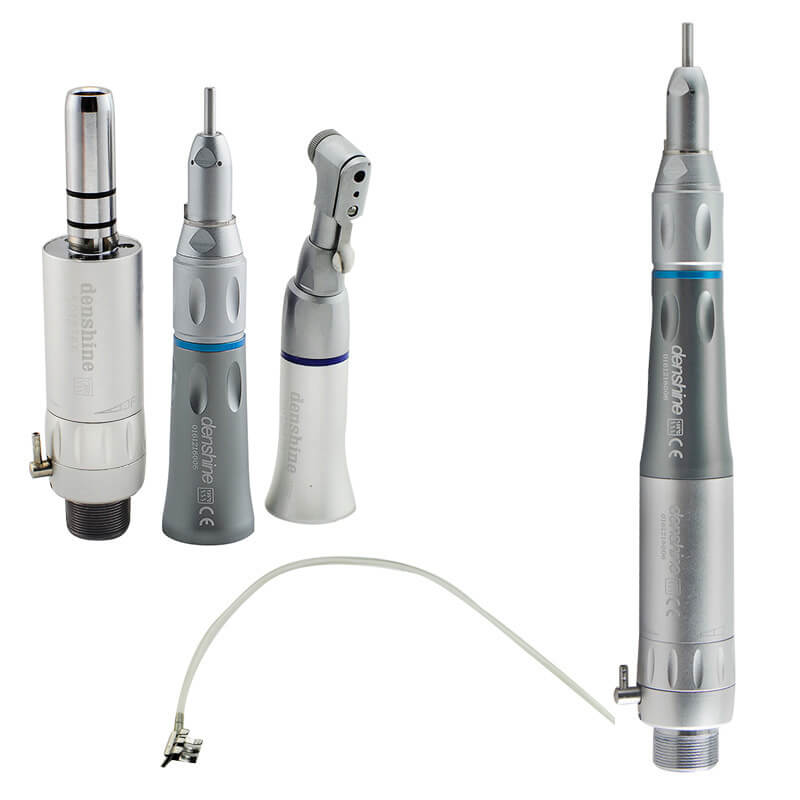

         This complete kit includes low speed handpiece contra angle model, low speed handpiece  straight model and low speed dental air motor.

Features:

• - E-type connector
• - Wrench type
• - Precise technology, Steady, no vibration while revolving, offering a steady operation.
• - Suitable for any E-type handpiece accords with ISO standard
• - 135°C Autoclavable, suitable for both steam and chemical autoclave

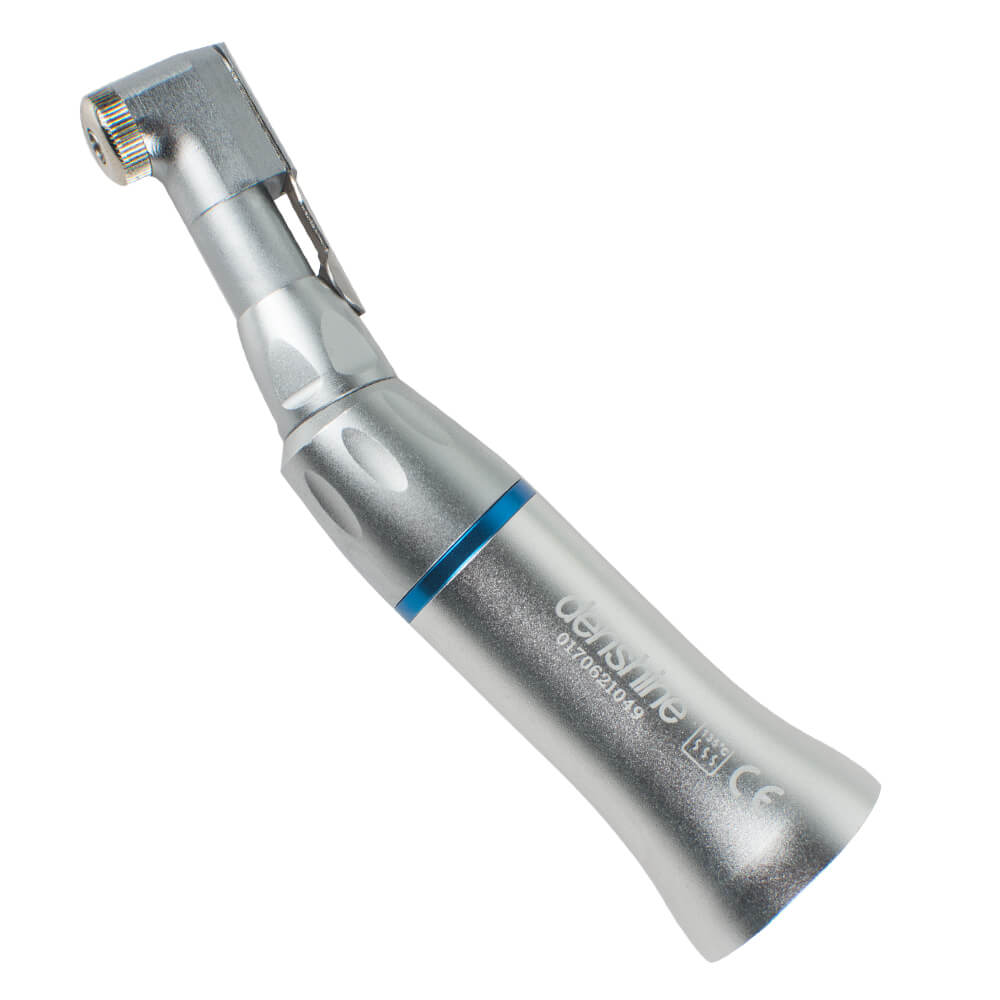

Contra angle handpiece

• - Low Speed 22,000-27,000 rpm.
• - The shank of the instrument mounted therein is 2.35 mm
• - Fastening of the instruments with a turning latch
• - Autoclavable 135°C
• - For any lab or E-type motors

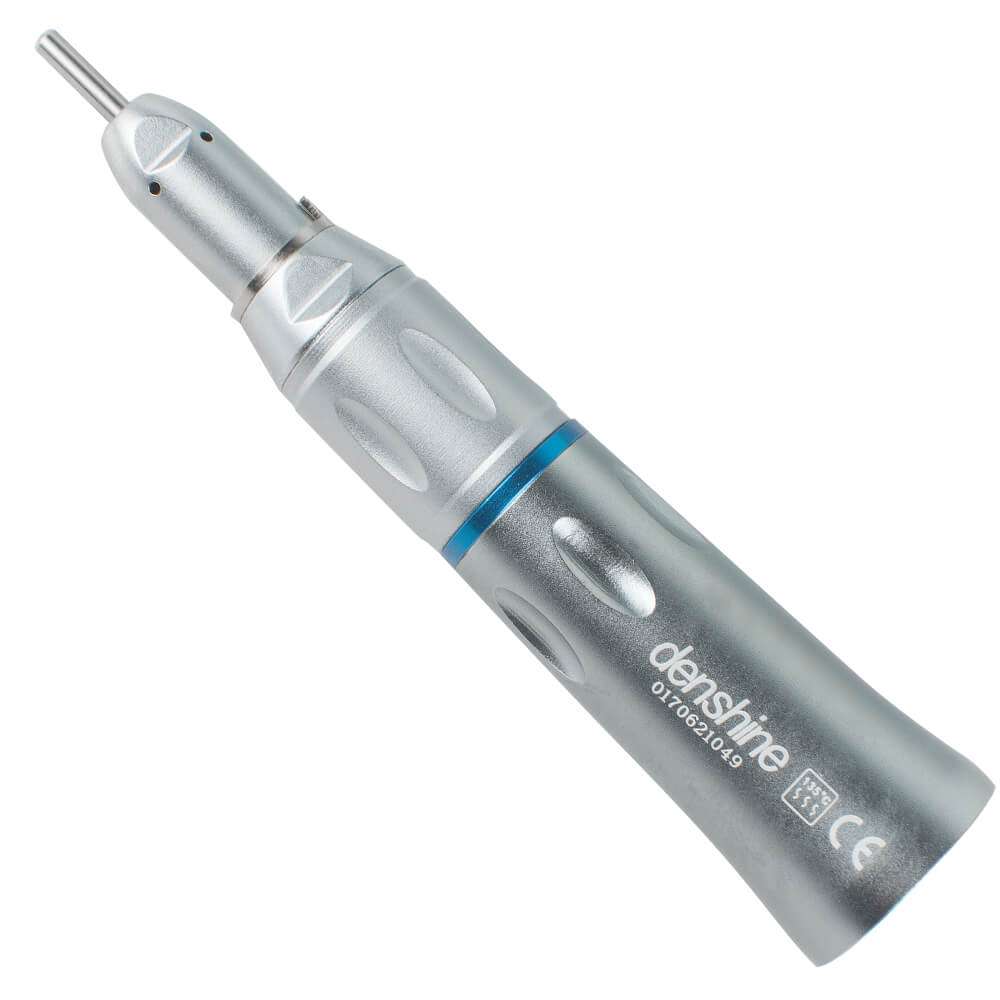

Straight Nose cone

• - Working pressure: 0.3MPa (2-hole);
• - 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
• - Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
• - Noise: ≤68dB
• - Air consumption: about 56L/min
• - Ratio: 1:1
• - Max speed of contra angle: 25000rpm/min.

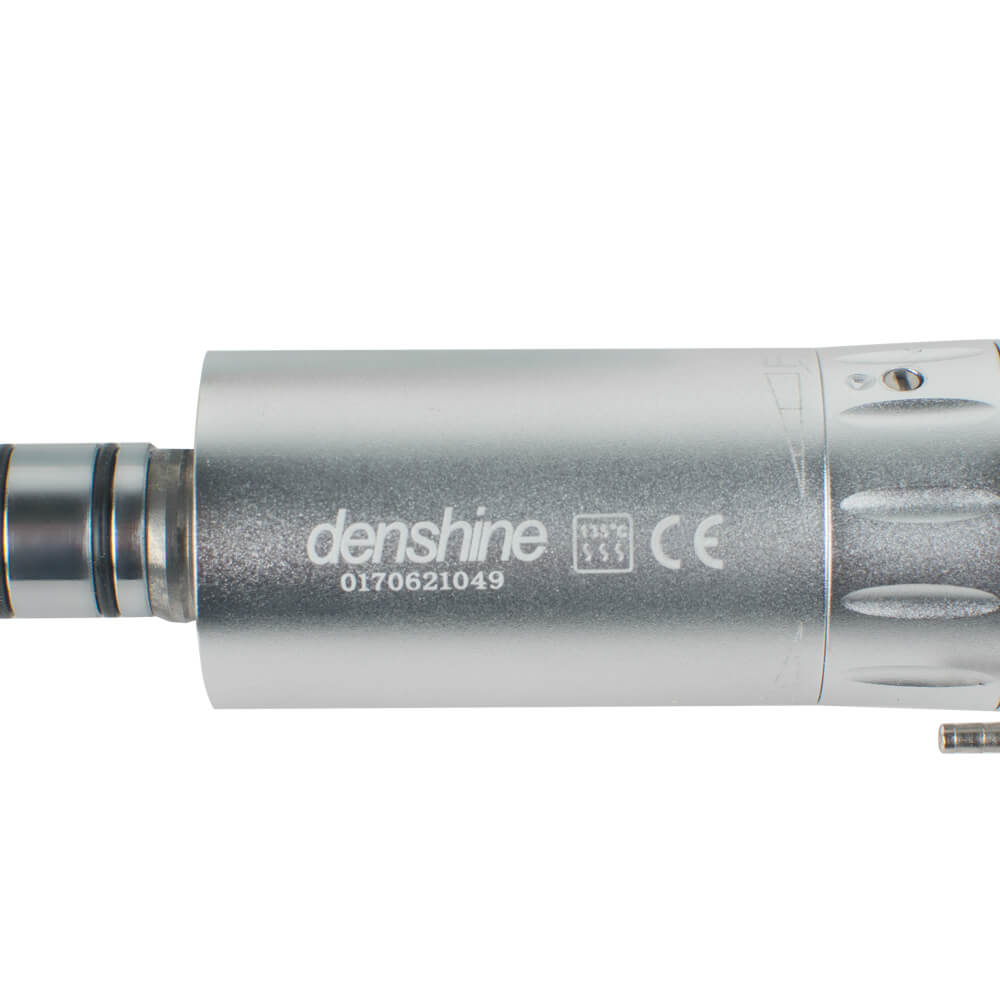

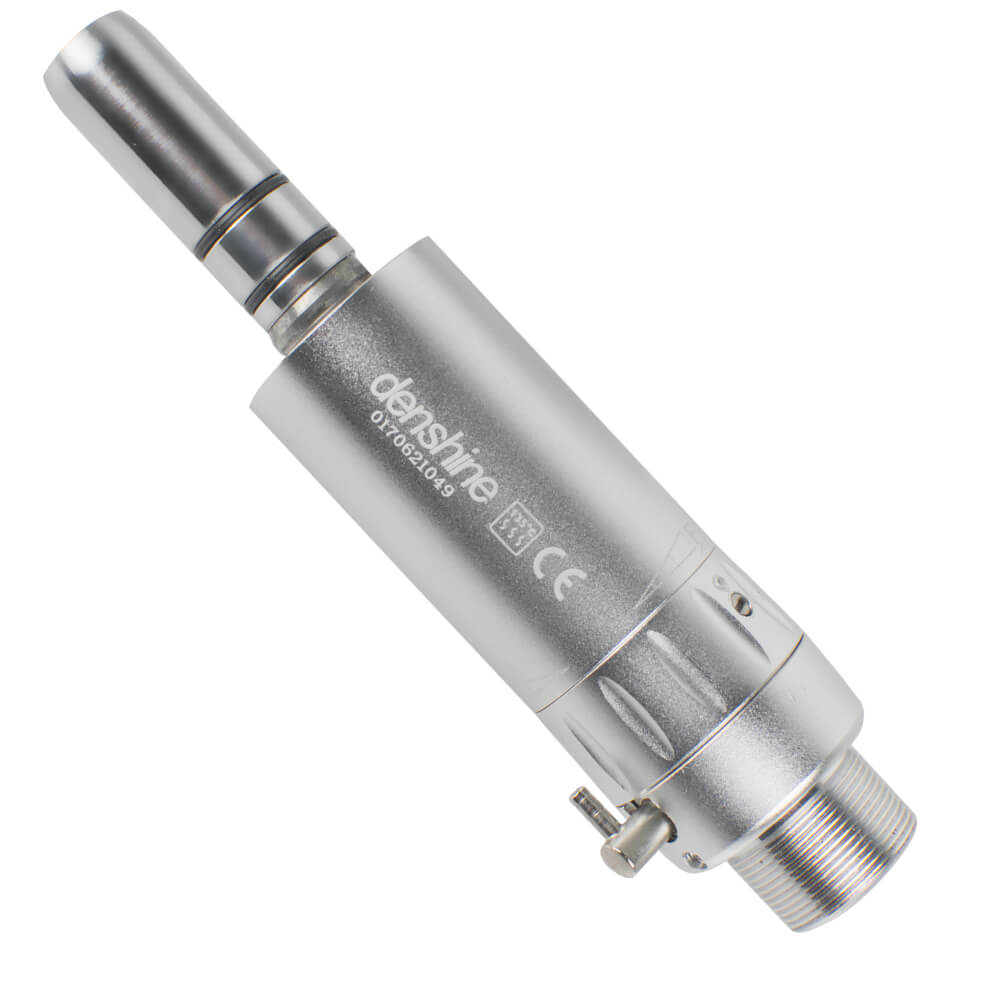

Air Mortor

• - Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
• - 1:1 Direct Drive
• - 2 holes
• - Max speed 20,000 min-1

Specifications

Warranty:

• - Long Life-Span
• - One Year Manufacturer Warranty

Packing List:

• - E-type air motor 2-Hole: 1 each
• - Straight nose cone: 1 each
• - Contra Angle handpiece: 1 each
• - Water spray nozzle: 1 each
• - Oil spray nozzle: 1 each
• - CAP Spanner: 1 each
• - English manual: 1 each
